2/3 HP Box Type Condensing Unit
Model Series: DCF020AM/ DCF030AM
Choose from 2 available HP option: 2HP-3HP
Remote & automatic temperature control
Digital LED temperature control display
Mid Back Pressure & High Back Pressure Scroll Compressor Option
Allow Remote Monitor Condensing Unit Status
Emerson Scroll Compressor
Best Fit for 20ft Cold Room Container, Walk in Freezer and other
Note.
The cooling capacity can vary depending on the required evaporating temperature. For detailed parameters, please refer to the technical specifications table provided below.
Application
How to select your cold room
1. What is the application of the cold room?
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
2. What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
3. Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser, if the temperature is high all the year, we need to choose condenser with bigger evaporation area.
| Application | Room Temperature |
|---|---|
| Fruit & Vegetable | -5°C ~ 8°C |
| Medicine & Vaccine | 0°C ~ 5°C |
| Ice cream & Ice Storage | -10°C ~ -5°C |
| Frozen meat storage | -25°C ~ -18°C |
| Fresh meat storage | -40°C ~ -30°C |

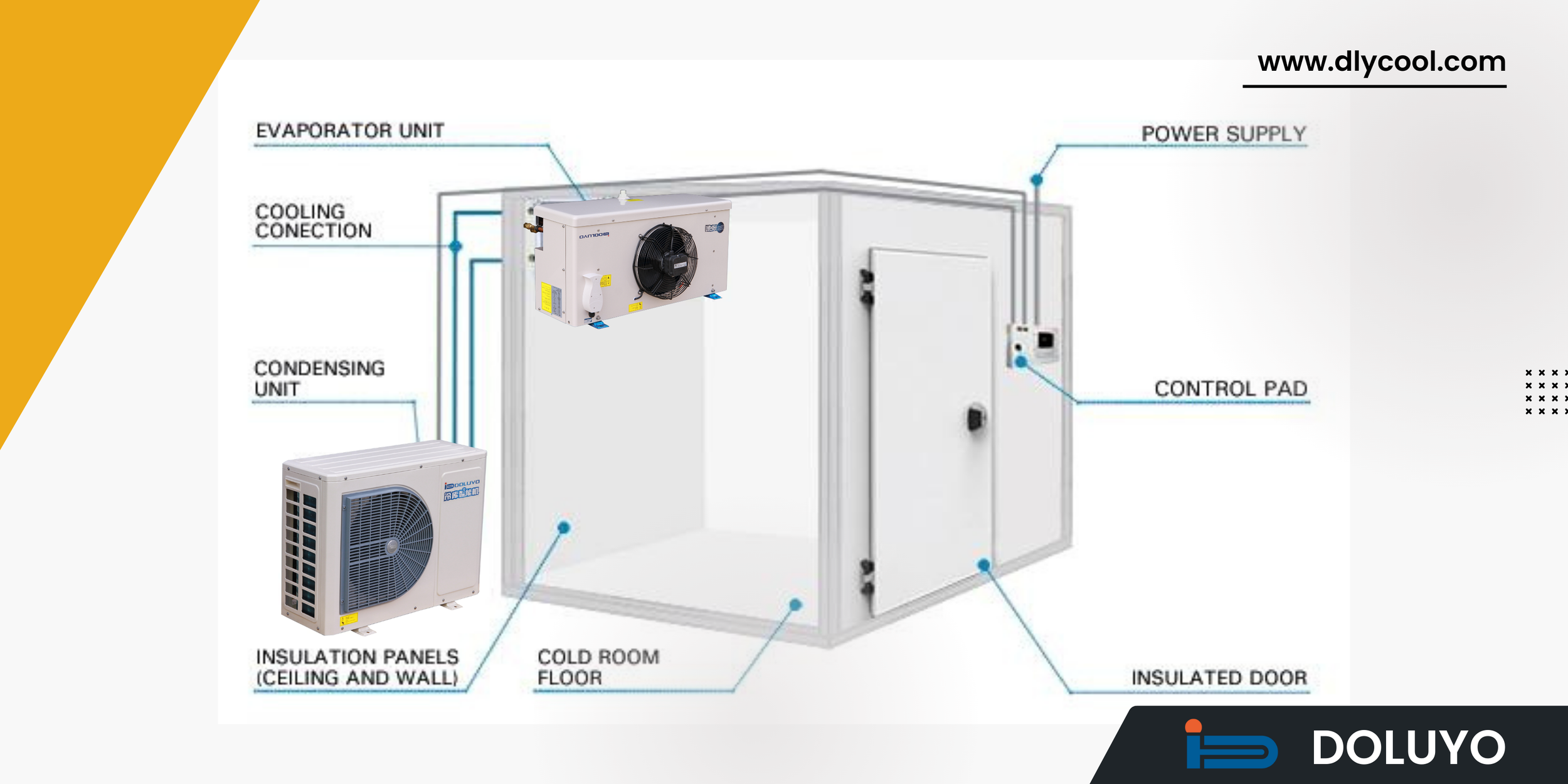

Cold Room Structure Graph
Doluyo cold room consistes of cold room panel (PU sandwich panel), cold room door, balance window, all in one condensing unit, evaporator (air cooler), control pad.
Everything you need for condensing unit for example, EEV, electric power cabinet, etc are integreted into the condensing unit.
Upgrade your outdoor refrigeration units with Doluyo's innovative box-type structure, designed to provide superior protection against dust and rain. Our cutting-edge enclosure ensures that vital components, such as the compressor, remain dry and secure, even during adverse weather conditions. This enhancement is crucial for maintaining the integrity of your refrigeration system. Keep in mind, with open-type refrigeration setups, there's a significant risk of water ingress leading to potential compressor damage. Choose Doluyo's protective solutions to safeguard your investment and enhance the longevity of your refrigeration equipment.
Cold Room Panel/PU Panel
| Panel Thickness (mm) | 50 | 75 | 100 | 150 | 250 |
|---|---|---|---|---|---|
| Stainless steel (mm) | 0.56 | 0.66 | 0.76 | 0.86 | 0.96 |
| Color steel (mm) | 0.426 | 0.526 | 0.5 | 0.6 | 0.8 |
| Galvanized steel (mm) | 1.0 | 1.2 | 1.5 | - | - |
| Salinization steel (mm) | 0.5 | 0.6 | - | - | - |
| Embossed aluminum (mm) | 0.6 | 0.8 | - | - | - |
| Non-slip aluminum (mm) | 3 | 5 | - | - | - |
Know Us Better
Solutions
Flower Processing
Room Temperature: 0℃ ~ 5℃
Regrigeration Unit: Pilot Series
Food Cold Storage
Room Temperature: -15℃ ~ -18℃
Regrigeration Unit: Pilot Series
Rice Dumpling Leaf
Room Temperature: 0℃ ~ 5℃
Regrigeration Unit: Pilot Series
Logistics Cold Storage
Room Temperature: -23℃ ~ -25℃
Regrigeration Unit: Pilot Series
Monoblock Cold Storage
Room Temperature: -15℃ ~ -18℃
Regrigeration Unit: Pilot Series
Disease Control Drugs
Room Temperature: -15℃ ~ -18℃
Regrigeration Unit: Pilot Series
Flower Processing
Room Temperature: 0℃ ~ 5℃
Regrigeration Unit: Pilot Series
Food Cold Storage
Room Temperature: -15℃ ~ -18℃
Regrigeration Unit: Pilot Series
Rice Dumpling Leaf
Room Temperature: 0℃ ~ 5℃
Regrigeration Unit: Pilot Series
Logistics Cold Storage
Room Temperature: -23℃ ~ -25℃
Regrigeration Unit: Pilot Series
Monoblock Cold Storage
Room Temperature: -15℃ ~ -18℃
Regrigeration Unit: Pilot Series
Disease Control Drugs Cold Storage
Room Temperature: -15℃ ~ -18℃
Regrigeration Unit: Pilot Series
Flower Processing
Room Temperature: 0℃ ~ 5℃
Regrigeration Unit: Pilot Series
Food Cold Storage
Room Temperature: -15℃ ~ -18℃
Regrigeration Unit: Pilot Series
Rice Dumpling Leaf
Room Temperature: 0℃ ~ 5℃
Regrigeration Unit: Pilot Series
Logistics Cold Storage
Room Temperature: -23℃ ~ -25℃
Regrigeration Unit: Pilot Series
Monoblock Cold Storage
Room Temperature: -15℃ ~ -18℃
Regrigeration Unit: Pilot Series
Disease Control Drugs Cold Storage
Room Temperature: -15℃ ~ -18℃
Regrigeration Unit: Pilot Series
Characteristics & Functions
Convenience
Independent research and development of digital LED temperature control display
The default low-pressure start and stop, or the start and stop controlled by an external switch signal or AC signal (choose one)
Trustworthy
Phase sequence detection and fault alarm
Compressor minimum outage time protection
Multi-speed speed regulation of condenser fan
Current display and fault alarm
High and low pressure display and fault alarm
Precise Control
Applicable storage temperature range: medium temperature (-20～-10℃)，low temperature (-30～0℃)
Convenience
Independent research and development of digital LED temperature control display
The default low-pressure start and stop, or the start and stop controlled by an external switch signal or AC signal (choose one)
Trustworthy
Phase sequence detection and fault alarm
Compressor minimum outage time protection
Multi-speed speed regulation of condenser fan
Current display and fault alarm
High and low pressure display and fault alarm
Precise Control
Applicable storage temperature range: medium temperature (-20～-10℃)，low temperature (-30～0℃)
Product Dimensions
| Model | DCF020AM-CD3 | DCF030AM-CD3 | |||
|---|---|---|---|---|---|
|
Cooling Capacity |
Room Temp. ℃ | ||||
| 8 | W | 4890 | 7077 | ||
| 0 | W | 3826 | 5537 | ||
| -10 | W | 2597 | 3757 | ||
| -18 | W | 2105 | 2630 | ||
| -20 | W | 1817 | 2352 | ||
| Nominal Power | W | 1890 | 2530 | ||
| Room Temp. Range | ℃ | -20~10 | |||
| Ambient Temp. Range | ℃ | -10~43 | |||
| Power Supply |
380V/3N ~ /50Hz (220V ~ /50Hz Optional) |
||||
| Refrigerant |
|
R404A | |||
| Compressor | Type | Hermetric scroll compressor | |||
| Horse Power | HP | 2 | 3 | ||
| Condenser Fan | Type | High efficiency low noise axial fan | |||
| QTY | PCS | 1 | |||
| Power | W | 60 | 60 | ||
| Pipe Connection | Liquid Line | mm | Φ9.52 | Φ12.7 | |
| Gas Line | mm | Φ12.7 | Φ15.88 | ||
| Unit power cord | mm | 2.5mm²x5 | |||
| Noise | dB(A) | 60 | |||
| Net Weight | kg | 76 | 83 | ||
| Dimensions(LxDxH) | mm | 952x438x823 | 952x438x823 | ||
Technical Parameters
| Model | DCF020AG-CD3 | DCF030AG-CD3 | |||
|---|---|---|---|---|---|
|
Cooling Capacity |
Room Temp. ℃ | ||||
| 0 | W | 5431 | 7135 | ||
| -10 | W | 3949 | 5189 | ||
| -18 | W | 3329 | 4227 | ||
| -25 | W | 2520 | 3311 | ||
| -30 | W | 2113 | 2777 | ||
| Nominal Power | W | 1270 | 2320 | ||
| Room Temp. Range | ℃ | -30~10 | |||
| Ambient Temp. Range | ℃ | -10~43 | |||
| Power Supply |
380V/3N ~ /50Hz (220V ~ /50Hz Optional) |
||||
| Refrigerant |
|
R404A | |||
| Compressor | Type | Hermetric scroll compressor | |||
| Horse Power | HP | 2 | 3 | ||
| Condenser Fan | Type | High efficiency low noise axial fan | |||
| QTY | PCS | 1 | |||
| Power | W | 60 | 60 | ||
| Pipe Connection | Liquid Line | mm | Φ9.52 | Φ12.7 | |
| Gas Line | mm | Φ12.7 | Φ15.88 | ||
| Unit power cord | mm | 2.5mm²x5 | |||
| Noise | dB(A) | 60 | |||
| Net Weight | kg | 76 | 83 | ||
| Dimensions(LxDxH) | mm | 952x438x823 | 952x438x823 | ||
