Dual Temperature & Dual Control Water Chiller
DLY 1000/1200/2000 DSeries
Introducing Doluyo's Dual Temperature & Dual Control Water Chiller (DLY-1000/1200/2000). Dual temperature control, designed to precisely regulate and maintain the temperatures of two critical components - the laser and the optics.
With a highly advanced intelligent digital control panel at its core, the DLY series water chiller efficiently manages both the refrigeration circuit and water temperature. Boasting water temperature stability of ± 0.3°C～0.5°C and cooling capacities ranging from 2700W-5200W, this chiller is an ideal choice for cooling 1000W-2000W fiber laser machines.
APPLICATIONS.
Suitable for 500W-30000W Fiber laser, cooling capacity from 2.7kW-70kW.
Know Us Better
CHARACTERISTICS & FUNCTIONS.
Convenience
Compact design, installation, easy maintenance.
High precision, high flow rate and accurate temperature control.
With RS485 communication function, could be remotely monitored through PC
Trustworthy
High-quality brand refrigeration components, with a lasting and stable cooling effect
Fan speed adjustable, electric expansion valve for energy regulating Control precision:±0.2°C~±0.5°C
Precise Control
Dual water temperature design: constant temperature keeping automatically, two sets of temperature setting, can set different temperature separately, double signals output; The chiller not only satisfying the cooling demand of the laser generator, but also supplying one cycle of cool water which is close to the ambient temperature to cool the laser outlet connections (like the QB H connector)
Reliable function
Independent research and development production of bilingual intelligent thermostat,
a variety of settings and fault prompt function, easy to operate
Pure water Filtration protection device to ensure the safety of the equipment
Convenience
Compact design, installation, easy maintenance.
High precision, high flow rate and accurate temperature control.
With RS485 communication function, could be remotely monitored through PC
Trustworthy
High-quality brand refrigeration components, with a lasting and stable cooling effect
Fan speed adjustable, electric expansion valve for energy regulating Control precision:±0.2°C~±0.5°C
Precise Control
Dual water temperature design: constant temperature keeping automatically, two sets of temperature setting, can set different temperature separately, double signals output; The chiller not only satisfying the cooling demand of the laser generator, but also supplying one cycle of cool water which is close to the ambient temperature to cool the laser outlet connections (like the QB H connector)
Reliable function
Independent research and development production of bilingual intelligent thermostat,
a variety of settings and fault prompt function, easy to operate
Pure water Filtration protection device to ensure the safety of the equipment

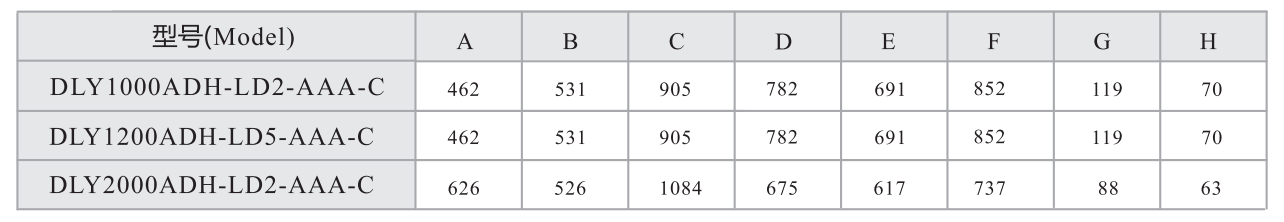

PRODUCT DIMENSIONS.
Unit:mm
TECHNICAL PARAMETERS.
| Model | DLY1000ADH-LD2-AAA-C | DIC1200ADH-LD5-AAA-C | DLY2000ADH-LD2-AAA-C | ||||
|---|---|---|---|---|---|---|---|
| Suggested Matching Laser | 1000W~1500W | 1500W | 2000W | ||||
| Nominal Cooling Capacity | W | 2700 | 3200 | 5200 | |||
| Power Supply | 220V ~ /50Hz | ||||||
| Max Input Power | W | 3555 | 3940 | 4420 | |||
| Max Current | A | 16 | 17.91 | 20 | |||
| Electric Heater Power | W | 2000 | |||||
| Rated Pump Lift | m | 33 | |||||
| ChilledWater RatedFlow | L/min | 33 | |||||
| NormalTemp. Water RatedFlow | L/min | 2 | |||||
| ChilledWater Inlet & Outlet | Rc 1/2" external thread convert to Φ12mm quick connector | ||||||
| NormalTemp. Water Inlet & Outlet | Rc 1/2" external thread convert to Φ10mm quick connector | ||||||
| Water Tank Volume | L | 10 | 15 | ||||
| FlowProtect | Chilled water: ≤2.0L/min (Disconnect) |
||||||
| Operation Range | Ambient Temp. | ℃ | ≤ 40 | ||||
| Water Temp. | ℃ | 8 ~ 30 | |||||
| Temp. Stability | ℃ | (Chilled water) ±0.3℃~±0.5℃ (NT.water)±0.1℃~±0.2℃ | |||||
| Net Weight | kg | 69 | 73 | 93 | |||
| Unit Dimension | mm | 535x465x915 | 626x526x1084 | ||||
| Packing Dimensions | mm | 785x555x991 | 809x620x1143 | ||||
