Chiller for Other Industry Equipment
DIC 200/240/300 Series
Doluyo water chiller cooling systems, crafted by the innovative chiller manufacturer, Doluyo, bring unparalleled refrigeration solutions to a broad range of industrial, medical, analytical, and laboratory applications.
Our Industrial Equipment water chiller provides an impressive cooling capacity ranging from 61,000W-90,000W, while maintaining an extremely precise temperature fluctuation of ±1°C. Complete with a user-friendly control panel, these chillers allow you to set your desired temperature or let the system auto-adjust within the range of 8°C～30°C. Experience the fusion of precision, energy-efficiency, and flexibility with Doluyo's Industrial Equipment water chiller.
APPLICATIONS.
High speed spindle cooling for machining center
CNC lathe, CNC engraving machine cooling
Laser welding for automotive battery industry
All kind of Diode pump lasers cooling, using in welding, cutting, cladding, cleaning and other Cooling capacity range: 2.7 kW-90 kW
CHARACTERISTICS & FUNCTIONS.
Trustworthy
All refrigeration components are famous brand, which can offer good and stable cooling performance.
Reliable
Independently developed and produced bilingual intelligent temperature controller, multiple setting and fault alarming, easy for operation
Stainless steel multi-stage centrifugal pump, high lift and high water Flow, stainless steel water tank, no corrosion
Multiple alarm protection functions and provide passive signal output
Trustworthy
All refrigeration components are famous brand, which can offer good and stable cooling performance.
Reliable
Independently developed and produced bilingual intelligent temperature controller, multiple setting and fault alarming, easy for operation
Stainless steel multi-stage centrifugal pump, high lift and high water Flow, stainless steel water tank, no corrosion
Multiple alarm protection functions and provide passive signal output

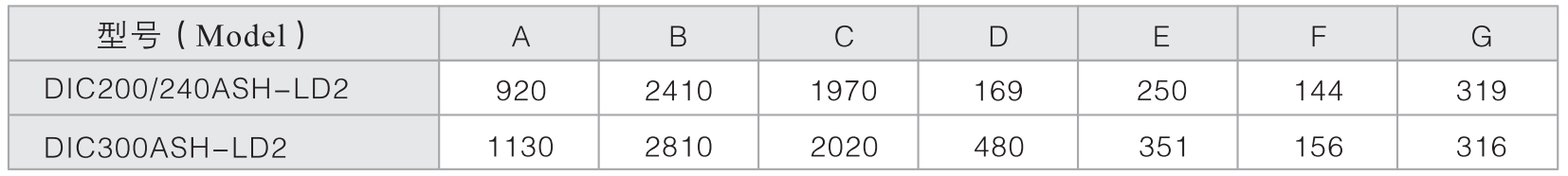

PRODUCT DIMENSIONS.
Unit:mm
TECHNICAL PARAMETERS.
| Model | DIC200ASH-LD2 | DIC240ASH-LD2 | DIC300ASH-LD2 | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Cooling Capacity | W | 61000 | 70000 | 90000 | |||||
| Power Supply | 380V/3N ~ /50Hz | ||||||||
| Max Input Power | W | 23040 | 25700 | 32780 | |||||
| Max Current | A | 43.78 | 48.83 | 62.28 | |||||
| Electric Heater Power | W | - | |||||||
| Pump | Rated Lift | m | 45 | ||||||
| RatedFlow | L/min | 133 | |||||||
| Water Tank Volume | L | 570 | 670 | ||||||
| Water Inlet & Outlet | Inch | Rc1-/1/2" | Rc2" | ||||||
| Flow Switch | (Operator flow):≥10.0L/min (Disconnect flow): ≤8.0L/min |
||||||||
| Operation Range | Ambient Temp. | ℃ | ≤ 40 | ||||||
| Water Temp. | ℃ | 8 ~ 30 | |||||||
| Temp. Stability | ℃ | ±1.0℃~±3.0℃ | |||||||
| Net Weight | kg | 930 | 950 | 1200 | |||||
| Unit Dimension | mm | 2410x920x19790 | 2810x1130x2020 | ||||||
| Packing Dimensions | mm | 2660x1170x2200 | 1300x2870x2172 | ||||||
